Description
|
Display Mode |
speed display, energy display |
|
Color scanning rate |
18cm depth, scan range is 85°angle,color full-field, rate of scan frame≥10 frames/sec |
|
Color enhancement |
Color Doppler energy diagram,direction speed diagram |
|
Display position adjustment |
Interested range of linear array scanning:-20°~+20° |
|
Display control |
Up/dowm,left/right flip,color contrast,zero movement |
|
Spectrum Doppler |
|
|
Spectrum Doppler mode |
Pulse Doppler PWD,optional continuous Doppler CWD |
|
Highest measuring flow rate |
The highest measuring flow rate of unidirectional pulsed Doppler≥6m/s The continuous Doppler unidirectional highest measurement flow rate≥15m/s |
|
Spectrum |
has functions which can automatically envelope measuring and calculation |
|
Sample volume width and position adjustment |
0.5-20mm graded adjustment |
|
Zero mobile |
≥level 6 |
|
Have the function of Doppler sampling then correct angle |
|
|
Display control |
Reverse Display (up and down,left and right),scanning angle three adjustable,local amplification(steeples smart zoom) |

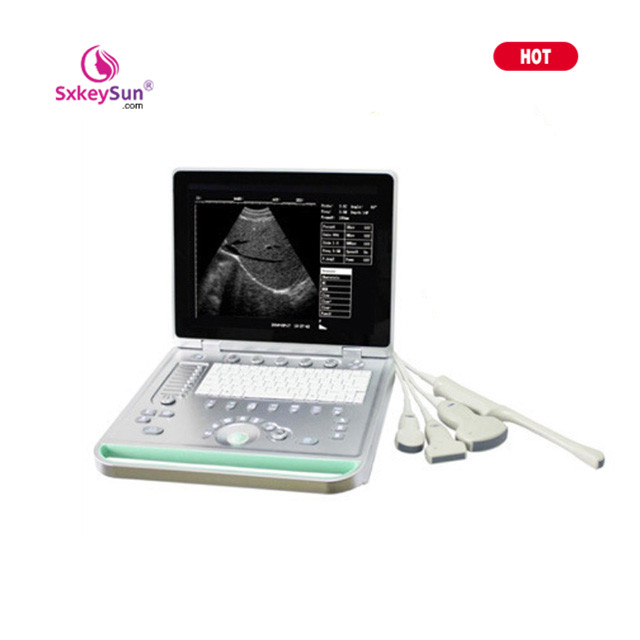

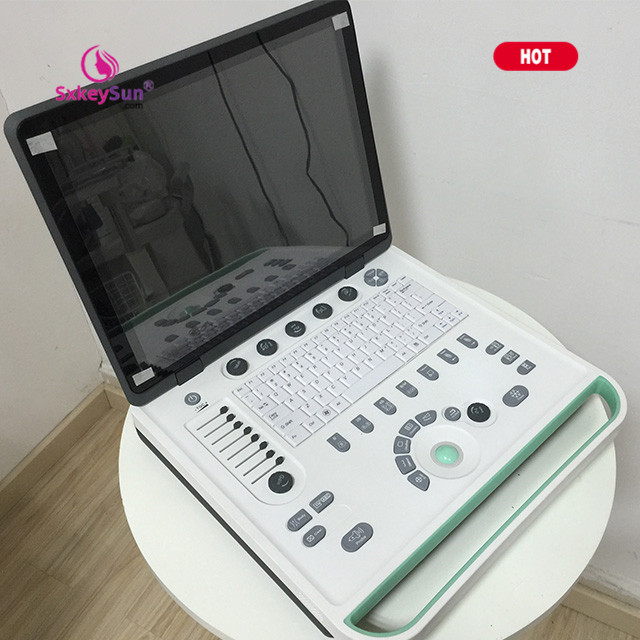

Main Features:
-15 inch LCD screen
-Full digital imaging technology, crystal-clear Image
-Pretty and light
-8 segment TGC
-Broadband multi-frequency probes
-2 probe connector
-Silica gel backlight gravure laser keyboard
-USB flash disk large volume image storage
-Cine loop
-Built-in battery(can work more than 5 hours)
-High Cost-effective
Main Technical Specification:
-Display size: 15 inch LCD screen
-Working frequency: 2.0MHz~10MHz
-Display mode: B, B+B, B+M, M, 4B
-Scanning range: Convex array 60°~150°
-Amplification factor:1.0, 1.2, 1.5,2.0
-Gain control: 8 segments TGC and overall gain can be adjusted respectively
-Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc
-Image gray-scale: 256 levels
-Scanning line number: 512 lines/frame
-Frame rate: 30 frames/second
–Digital scanning conversion: 512×512×8 bits
-Memory: USB flash disk large volume image storage
-Conventional measurements: distance, perimeter, area, volume
-Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC),
expected date of confinement and fetus weight, etc.
-Report function: auto make report
-Output interface: USB port, video.
-2.5-7.5MHZ Convex array probe;
-two probe sockets;
-Trolley bag
1.24 hour online service
2.We offer OEM&ODM service.
3.We offer free samples for you to test the quality.
4.Package customize is welcomed!
5.Our products are approved by CE and ROHS
Q: Are you a manufacturer or a trading company?
A: Yes, we are a manufacturer. Health care products are main product of our plant, and plant extract are also our hot selling items from our brother plant.
Q: Can you accept customization?
A: Yes, we offer OEM/ODM scrvice.You can custom every similar product you want.
